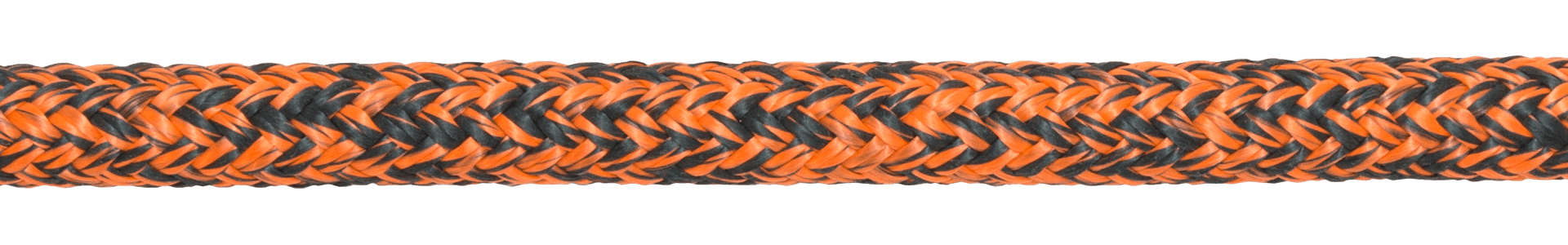

VEC-12

GP-12 colour core, covered with a Technora®/HT Polyester composite blend.

This high-performance sailing braid is designed for ultra-low stretch applications requiring good heat management. The compact construction of the core provides rigidity in clutches and jammer, while the Technora® in the cover increases tensile strength as well as abrasion resistance. The high UV rating of the Stealth Fibre® core means that the cover can be stripped without fear of a UV-related loss in strength.

Features

  • Great heat management
  • Good grip around blocks and in cleats
  • Ultra-low stretch
  • Low creep

Technical

Core Material GP-12 Colour UHMwPE
Cover Material Technora®/HT Polyester Composite
Construction Double Braid

Standard Range

Diameters 4 – 30 mm (larger diameters available on request)
Reel Length 200 m
Colour Colour & black mottle

Applications

  • Sheets
  • Halyards
  • Control Lines
  • Out/downhauls
  • Guys
  • Runner Tails
  • Kickers
  • Reefing Lines
  • Furlers
  • Travellers

Options

  • Spliced Eyes
  • Thimbles
  • 100% Technora Cover

Break Loads (Metric)

Diameter (mm) Spliced Break Load (t) Linear Break Load (t)
40.280.31
50.850.94
61.301.40
72.202.40
83.103.40
94.304.70
105.205.70
128.309.20
1410.9012.00
1615.3016.90
1817.9019.80
2027.0029.90
2231.3034.70
2440.8045.20
2647.0052.10
2855.2061.20
3065.3072.40
