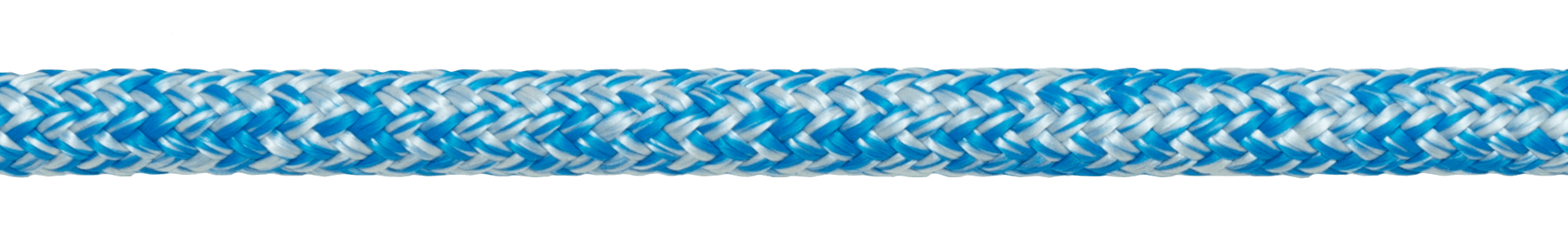

Superbraid

Super-12® with a high tenacity polyester cover.

This high-performance rope is designed for sailing applications where ultra-low stretch is required. The high UV rating of the core means that the cover can be stripped without fear of a UV-related loss in strength.

Features

Light weight
Ultra-low stretch
UV resistant core
Polyester sheath prevents block and jammer slippage

Technical

Core Material	Super-12® UHMwPE
Cover Material	HT Polyester
Construction	Double Braid

Standard Range

Diameters	4 – 30 mm (larger diameters available on request)
Reel Length	200 m
Colour	Colour & white mottle

Applications

Control Lines
Tow Lines
Winch Lines
Wire rope Replacement
Sheets
Halyards
Out/downhauls
Guys
Runner Tails
Kickers
Reefing Lines
Furlers
Travellers

Options

Spliced Eyes
Thimbles
Solid Colour Cover

Break Loads (Metric)

Diameter (mm)	Spliced Break Load (t)	Linear Break Load (t)
4	0.28	0.31
5	0.85	0.94
6	1.30	1.40
7	2.20	2.40
8	3.10	3.40
9	4.30	4.70
10	5.20	5.70
12	8.30	9.20
14	10.90	12.00
16	15.30	16.90
18	17.90	19.80
20	27.00	29.90
22	31.30	34.70
24	40.80	45.20
26	47.00	52.10
28	55.20	61.20
30	65.30	72.40
