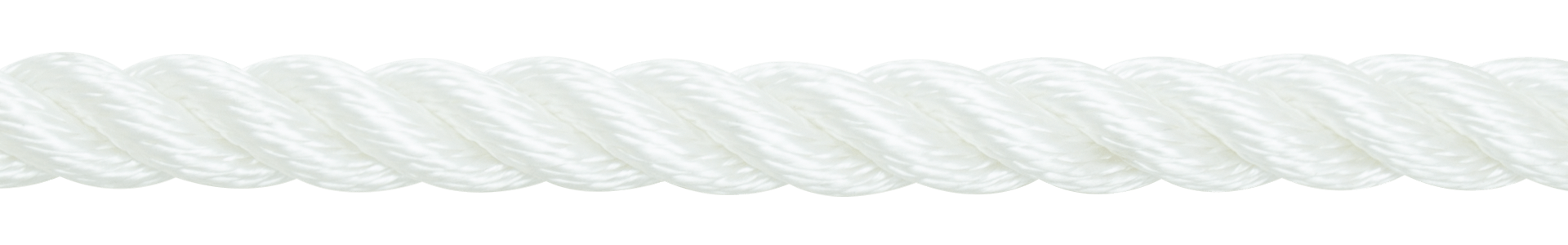

3-Strand Polyrene
General purpose alternative to nylon that sinks and retains 100% strength when wet.
Polyrene® been developed as an economic alternative to nylon, maintaining similar strength, specific gravity and appearance characteristics, without water-related strength loss or hardening with use. A new rope will stretch approximately 25% at break. The permanent elongation after initial loading to safe working load is approximately 4%.
Features
- ISO 10556
- Excellent abrasion resistance
- UV resistant
- Strength not affected by water
- Does not shrink
- Sinking rope
Applications
- Mooring lines
- Anchor warps
- Towing lines
- Frame net ropes
- Foot ropes
- Head lines
Technical
| Material | Polyrene® Blend |
|---|---|
| Construction | 3-Strand Hawser Lay |
Standard Range
| Diameters | 6 – 46 mm |
|---|---|
| Reel Length | 220 m |
| Colour | White |
Options
- Spliced Eyes
- Custom Colours
- Custom Lengths
Break Loads (Metric)
| Diameter (mm) | Reel Size (m) | kg / Reel | Break Load (kg) |
|---|---|---|---|
| 6 | 220 | 5.2 | 800 |
| 8 | 220 | 9.3 | 1400 |
| 10 | 220 | 14.3 | 2100 |
| 12 | 220 | 20.6 | 3000 |
| 14 | 220 | 28 | 4100 |
| 16 | 220 | 36.5 | 5200 |
| 18 | 220 | 46 | 6600 |
| 20 | 220 | 57 | 8100 |
| 22 | 220 | 69 | 9500 |
| 24 | 220 | 82 | 11400 |
| 26 | 220 | 97 | 13200 |
| 28 | 220 | 112 | 15000 |
| 30 | 220 | 129 | 17000 |
| 32 | 220 | 146 | 19000 |
| 36 | 220 | 184 | 23560 |
| 38 | 220 | 206 | 26000 |
| 40 | 220 | 228 | 28500 |
| 42 | 220 | 252 | 33075 |
| 44 | 220 | 276 | 36300 |
| 46 | 220 | 302 | 39670 |
Note: Always select a rope with an adequate safety factor for the application.
