Super 12

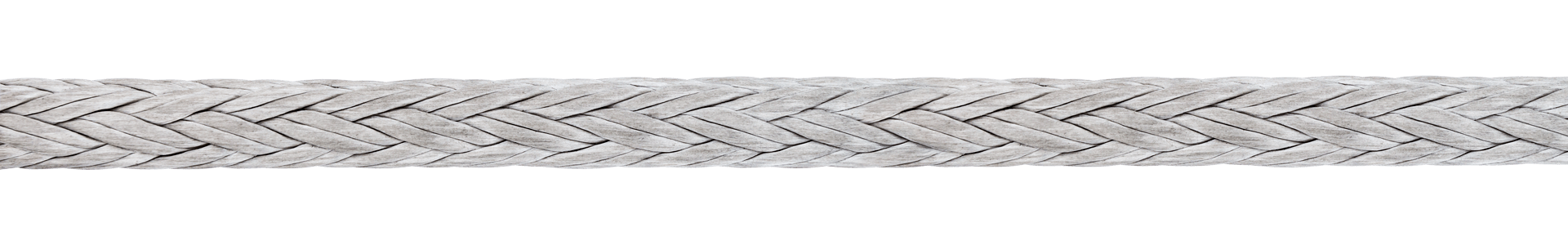

Heat-treated 12-strand single braid HMPE rope with abrasion-resistant coating

This rope is designed for high load applications where exceptionally low weight is required—making for an excellent wire-replacement rope. The heat treatment and polyurethane coating applied increases the rope's abrasion resistance, prolonging its life.

Features

Extreme strength-to-weight ratio
15 x stronger than steel
Safer than wire (low recoil)
Hydrophobic fibre (no water absorption)
Floats
Low creep
Easy to splice
Resistant to kinking
Maintains high strength around tight-radius bends
Exceptional UV and chemical resistance
Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip

Technical

Material	Stealth Fibre
Construction	12-Strand Single Braid
Treatment	Heat-set with polyurethane coating

Standard Range

Diameters	1 – 105 mm (larger diameters available on request)
Reel Length	200 m
Colour	Silver-grey

Applications

Wire rope replacement
Winch lines
Towing
Lifting
Halyards
Check stays
Guys
Runner Tails
Kickers
Strops

Options

Available in 3 constructions:
- Single strand (1 – 9 mm)
- Double strand (10 – 60 mm)
- Braid-on-braid (64 – 105 mm)
Custom colours (silver-grey standard)
Protective cover braid
Larger diameters
Spliced eyes
Thimbles
Proof loading with certificate

Break Loads

Diameter (mm)	Kg's / 100m	Minimum Linear Break Load (Kg's)	Minimum Spliced BL (Kg's)	Diameter (Inches)	Minimum Linear BL (LBS)	Minimum Spliced BL (LBS)
3	0,74	1 400	1 300	1/8"	3 086	2 866
4	1,23	2 400	2 200	5/32"	5 291	4 850
5	1,76	3 400	3 100	3/16"	7 496	6 834
6	2,46	4 800	4 300	15/32"	10 582	9 480
7	2,96	5 800	5 200	9/32"	12 787	11 464
8	3,70	7 300	6 600	5/16"	16 094	14 550
9	4,68	9 200	8 300	23/32"	20 283	18 298
10	5,42	10 800	9 700	13/32"	23 810	21 385
12	8,38	17 000	15 300	15/32"	37 479	33 731
14	10,35	19 900	17 900	9/16"	43 872	39 463
16	14,30	23 500	21 200	5/8"	51 809	46 738
18	19,23	34 700	31 300	23/32"	76 500	69 005
20	25,14	45 300	40 800	25/32"	99 869	89 948
22	30,07	52 200	47 000	7/8"	115 081	103 617
24	35,00	61 300	55 200	15/16"	135 143	121 695
26	40,92	72 500	65 300	1-1/32"	159 835	143 962
28	47,33	84 400	76 000	1-3/32"	186 070	167 551
30	53,24	91 600	82 500	1-3/16"	201 943	181 881
32	62,11	93 900	84 600	1-1/4"	207 014	186 511
34	65,07	105 500	95 000	1-11/32"	232 587	209 439
36	78,38	118 500	106 800	1-13/32"	261 247	235 453
38	85,78	131 000	118 000	1-1/2"	288 805	260 145
40	96,13	145 400	131 000	1-9/16"	320 552	288 805
42		160 000	143 000	1-21/32"	352 739	315 261
46		186 000	157 000	1-13/16"	410 059	346 125
48	133,10	200 000	181 000	1-7/8"	440 924	399 036
50		212 000	191 000	1-31/32"	467 379	421 082
52	155,29	223 000	201 000	2-1/16"	491 630	443 129
54		240 000	215 000	2-1/8"	529 109	473 993
56	177,47	255 000	230 000	2-3/16"	562 178	507 063
58		275 000	248 000	2-9/32"	606 271	546 746
60	210,74	300 000	268 000	2-3/8"	661 386	590 838
62		325 000	293 000	2-7/16"	716 501	645 954
64	227,75	355 000	320 000	2-1/2"	782 640	705 478
66		375 000	339 000	2-19/32"	826 732	747 366
68	295,78	400 000	360 000	2-11/16"	881 848	793 663
70		420 000	379 000	2-3/4"	925 940	835 551
72	298,74	444 000	444 000	2-27/32"	978 851	978 851
74		470 000	424 000	2-15/16"	1 036 171	934 759
76	339,00	500 000	450 000	3"	1 102 310	992 079
78		526 000	474 000	3-1/16"	1 159 630	1 044 990
80	357,00	555 000	500 000	3-5/32"	1 223 564	1 102 310
88	506,00	666 000	600 000	3-15/32"	1 468 277	1 322 772
96	591,00	788 000	710 000	3-25/32"	1 737 241	1 565 280
105		944 000	850 000	4-9/32"	2 081 161	1 873 927

Note: Values from 64 mm upwards are theoretical.

We offer an extensive range of larger diameters and longer lengths — available up to 168 mm. Get in touch with us today to find the perfect fit for your needs.
