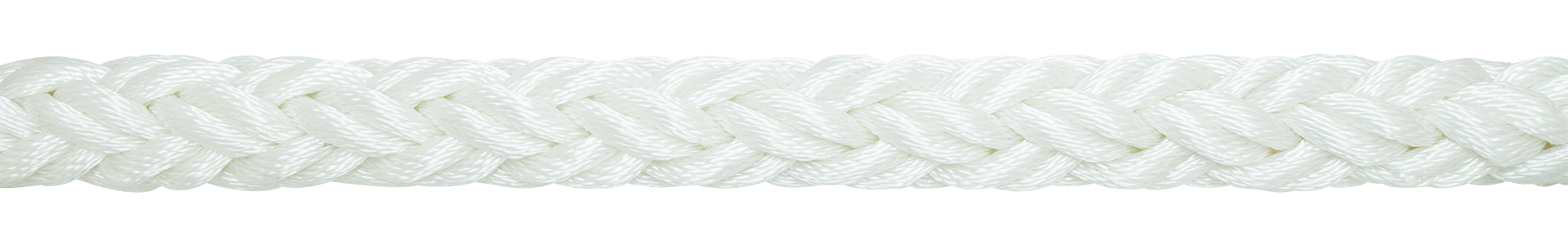

8-Strand Polyester
General purpose sinking rope that remains flexible and easy to handle when wet.
Polyester has excellent UV and abrasion resistant properties and will not shrink or lose strength when wet.
Features
- ISO 1141
- Strength not affected by water
- Does not shrink
- UV resistant
- Abrasion resistant
- Sinking rope
Applications
- Anchor warps
- Mooring warps
- Lanyards
- Fender lines
- Towing lines
- Traditional halyards and ropes
- Net frame ropes
- General-purpose industrial ropes
Technical
| Material | HT Polyester |
|---|---|
| Construction | 12-Strand |
Standard Range
| Diameters | 32 – 100 mm (others available on request) |
|---|---|
| Reel Length | 220 m (other sizes available on request) |
| Colour | Black or white (other colours available on request) |
Options
- Spliced eyes
Break Loads (Metric)
| Diameter (mm) | Reel Size (m) | kg / Reel | Break Load (kg) |
|---|---|---|---|
| 32 | 220 | 184 | 20800 |
| 36 | 220 | 233 | 25700 |
| 38 | 220 | 260 | 28350 |
| 40 | 220 | 288 | 35000 |
| 44 | 220 | 348.5 | 37600 |
| 48 | 220 | 414.7 | 42100 |
| 50 | 220 | 450 | 53450 |
| 56 | 220 | 565 | 59800 |
| 60 | 220 | 648 | 68600 |
| 64 | 220 | 737 | 81000 |
| 68 | 220 | 832 | 89000 |
| 72 | 220 | 933 | 99000 |
| 76 | 220 | 1037 | 104000 |
| 80 | 220 | 1152 | 116000 |
| 82 | 220 | 1210 | 120000 |
| 84 | 220 | 1270 | 125000 |
| 88 | 220 | 1393 | 135000 |
| 92 | 220 | 1522 | 147550 |
| 96 | 220 | 1657 | 160600 |
| 100 | 220 | 1798 | 174300 |
Note: Always select a rope with an adequate safety factor for the application.
