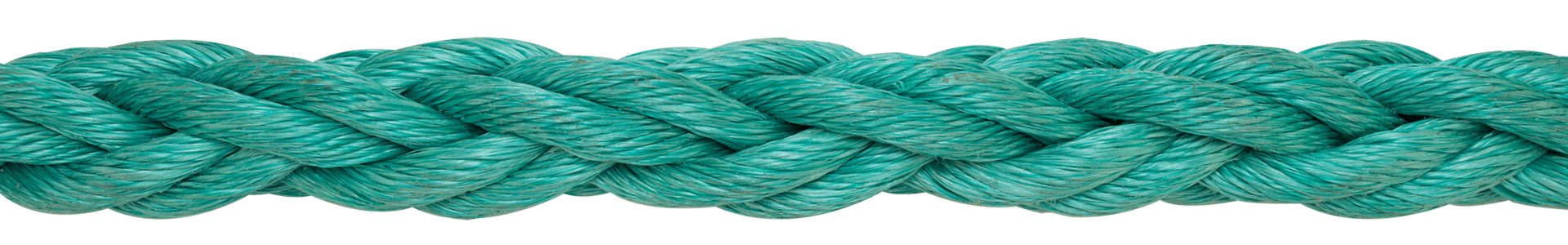

8-Strand Polysteel
General purpose, UV resistant floating rope
A low cost, low weight (floating), UV resistant, and a high quality tensile synthetic rope, manufactured from extruded copolymer fibres, whose properties result in ropes that size for size are almost triple the strength of traditional manila natural fibre ropes, and almost 50% stronger than conventional tape polypropylene ropes. These ropes have very good abrasion resistance and are manufactured in various colours, and to different specifications depending on their particular use and customer requirements.
Features
- ISO 1346:2012
- ISO 9554:2010
- Excellent abrasion resistance
- UV resistant
- Lightweight
- Floats
Applications
- Fishing
- Agriculture
- Aquaculture
- Long-lining
- Safety nets
- Fishing nets
- Lifting, mooring
- Truck tie downs
- Concrete re-enforcement
- General purpose industrial use
Technical
| Material | Polysteel® |
|---|---|
| Construction | 8-Strand Braid |
Standard Range
| Diameters | 32 – 100 mm |
|---|---|
| Reel Length | 220 m |
| Colour | White, Grey, Turquoise, Brick |
Options
- Spliced Eyes
- Custom Colours
- Custom Lengths
- Fire retardant options available on request
Break Loads (Metric)
| Diameter (mm) | Reel Size (m) | kg / Reel | Break Load (kg) |
|---|---|---|---|
| 32 | 220 | 101 | 17500 |
| 36 | 220 | 130 | 22080 |
| 38 | 220 | 144 | 24350 |
| 40 | 220 | 158 | 26860 |
| 44 | 220 | 194 | 31780 |
| 48 | 220 | 230 | 37180 |
| 50 | 220 | 248 | 40000 |
| 56 | 220 | 312 | 49380 |
| 60 | 220 | 360 | 56680 |
| 64 | 220 | 407 | 64100 |
| 68 | 220 | 460 | 72062 |
| 72 | 220 | 515 | 80225 |
| 76 | 220 | 577 | 88000 |
| 80 | 220 | 640 | 99050 |
| 82 | 220 | 672 | 102000 |
| 84 | 220 | 705 | 106000 |
| 88 | 220 | 774 | 112000 |
| 92 | 220 | 846 | 122415 |
| 96 | 220 | 921 | 133200 |
| 100 | 220 | 999 | 144600 |
Note: Always select a rope with an adequate safety factor for the application.
