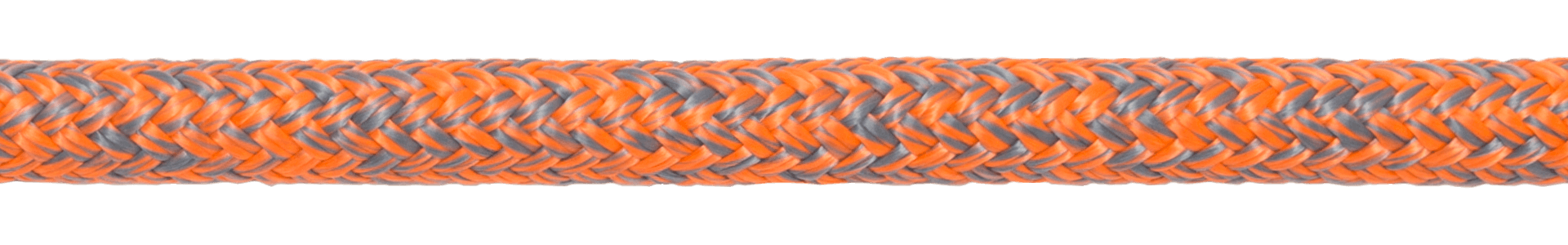

Gp-Braid
GP-12 colour core, covered with high tenacity polyester.
This high-performance rope is designed for sailing applications where ultra-low stretch is required. The high UV rating of the Stealth Fibre core means that the cover can be stripped without fear of a UV-related loss in strength. The compact construction of the core also provides rigidity in clutches and jammers.
Features
- Light weight
- Ultra-low stretch
- UV resistant core
- Abrasion resistant cover
Technical
| Core Material | GP-12 Colour UHMwPE |
|---|---|
| Cover Material | HT Polyester |
| Construction | Double Braid |
Standard Range
| Diameters | 4 – 30 mm (larger diameters available on request) |
|---|---|
| Reel Length | 200 m |
| Colour | Colour & grey mottle |
Applications
- Sheets
- Halyards
- Control Lines
- Out/downhauls
- Guys
- Runner Tails
- Kickers
- Reefing Lines
- Furlers
- Travellers
Options
- Matching core & cover colour
- Spliced Eyes
- Thimbles
Break Loads (Metric)
| Diameter (mm) | Spliced Break Load (t) | Linear Break Load (t) |
|---|---|---|
| 4 | 0.28 | 0.31 |
| 5 | 0.85 | 0.94 |
| 6 | 1.30 | 1.40 |
| 7 | 2.20 | 2.40 |
| 8 | 3.10 | 3.40 |
| 9 | 4.30 | 4.70 |
| 10 | 5.20 | 5.70 |
| 12 | 8.30 | 9.20 |
| 14 | 10.90 | 12.00 |
| 16 | 15.30 | 16.90 |
| 18 | 17.90 | 19.80 |
| 20 | 27.00 | 29.90 |
| 22 | 31.30 | 34.70 |
| 24 | 40.80 | 45.20 |
| 26 | 47.00 | 52.10 |
| 28 | 55.20 | 61.20 |
| 30 | 65.30 | 72.40 |
Note: Always select a rope with an adequate safety factor for the application.
