GP-12

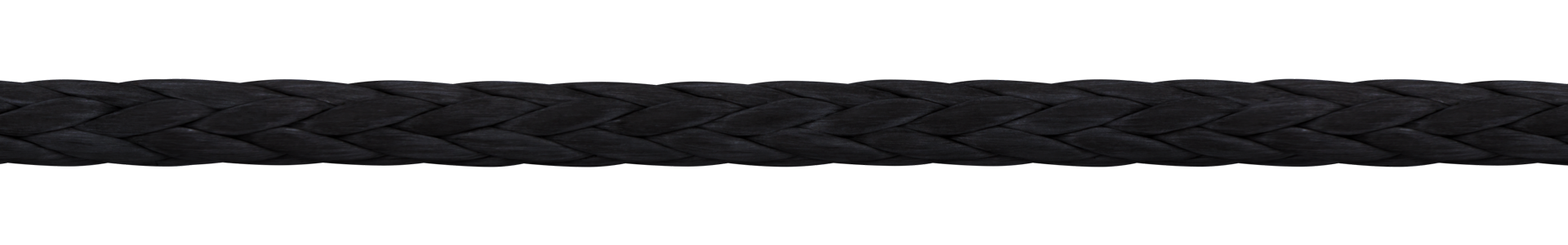

GP-12 — Stealth Fibre® Single Braid
Solution-dyed Stealth Fibre® single braid, heat treated with abrasion-resistant coating. This rope is designed for high load applications where exceptionally low weight is required—making for an excellent wire-replacement rope. The heat treatment and polyurethane coating applied increases the rope's abrasion resistance, prolonging its life. The solution-dyed Stealth Fibre® yarn provides excellent colourfastness and deep colour that will not fade or rub off.
Features
- Solution-dyed Stealth Fibre® (excellent colourfastness)
- Extreme strength-to-weight ratio
- 15 x stronger than steel
- Safer than wire (low recoil)
- Hydrophobic fibre (no water absorption)
- Floats
- Low creep
- Easy to splice
- Resistant to kinking
- Maintains high strength around tight-radius bends
- Exceptional UV and chemical resistance
- Abrasion-resistant coating reduces likelihood of snagging and provides superior winch drum grip
Technical
| Material | Stealth Fibre® |
|---|---|
| Construction | 12-strand single braid |
| Treatment | Heat-set with polyurethane coating |
Standard Range
| Diameters | 1 – 20 mm (larger diameters available on request) |
|---|---|
| Reel Length | 200 m |
| Colour | Black |
Applications
- Wire rope replacement
- Winch lines
- Towing
- Lifting
- Halyards
- Check stays
- Guys
- Runner Tails
- Kickers
- Strops
- Stunts
- Ziplines
Options
- Available in 2 constructions:
- Single strand (1 – 9 mm)
- Double strand (10 – 20 mm)
- Custom colours:
- Black (Standard)
- White
- Blue
- Orange
- Yellow
- Green
- Protective cover braid
- Larger diameters
- Spliced eyes
- Thimbles
- Proof loading with certificate
Break Loads (Metric)
| Diameter (mm) | Spliced Break Load (t) | Linear Break Load (t) |
|---|---|---|
| 1 | 0.28 | 0.31 |
| 2 | 0.85 | 0.94 |
| 3 | 1.3 | 1.4 |
| 4 | 2.2 | 2.4 |
| 5 | 3.1 | 3.4 |
| 6 | 4.3 | 4.8 |
| 7 | 5.2 | 5.8 |
| 8 | 6.6 | 7.3 |
| 9 | 8.3 | 9.2 |
| 10 | 9.7 | 10.8 |
| 12 | 15.3 | 17.0 |
| 14 | 17.9 | 19.9 |
| 16 | 21.2 | 23.5 |
| 18 | 31.3 | 34.7 |
| 19 | 34.9 | 38.7 |
| 20 | 40.8 | 45.3 |
Note: Always select a rope with an adequate safety factor for the application.
