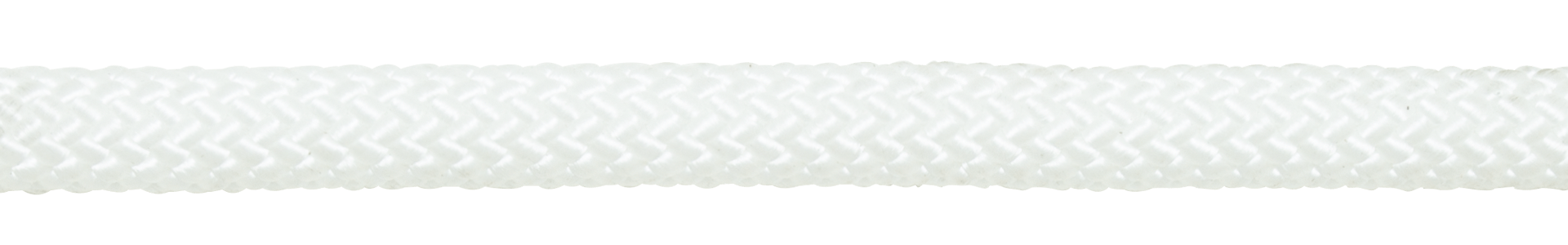

Pilot Rope
Small diameter rope for piloting larger diameter ropes or cables.
Features
- Rigid construction
- Low stretch
- Abrasion resistant
- UV resistant
Applications
- Pulling transmission lines/overhead conductors
- Pulling ropes
Technical
| Core Material | HT Polyester |
|---|---|
| Cover Material | HT Polyester |
| Construction | Double Braid |
Standard Range
| Diameters | 8 – 18 mm |
|---|---|
| Reel Length | 100 or 200 m |
| Colour | White |
Options
- Rough or smooth construction
- Colour marker
Break Loads (Metric)
| Diameter (mm) | m / kg | Break Load (kg) |
|---|---|---|
| 8 | 20 | 1400 |
| 10 | 14 | 2100 |
| 12 | 9.5 | 3000 |
| 14 | 7.6 | 3900 |
| 16 | 6.2 | 5500 |
| 18 | 4.5 | 6000 |
Note: Always select a rope with an adequate safety factor for the application.
